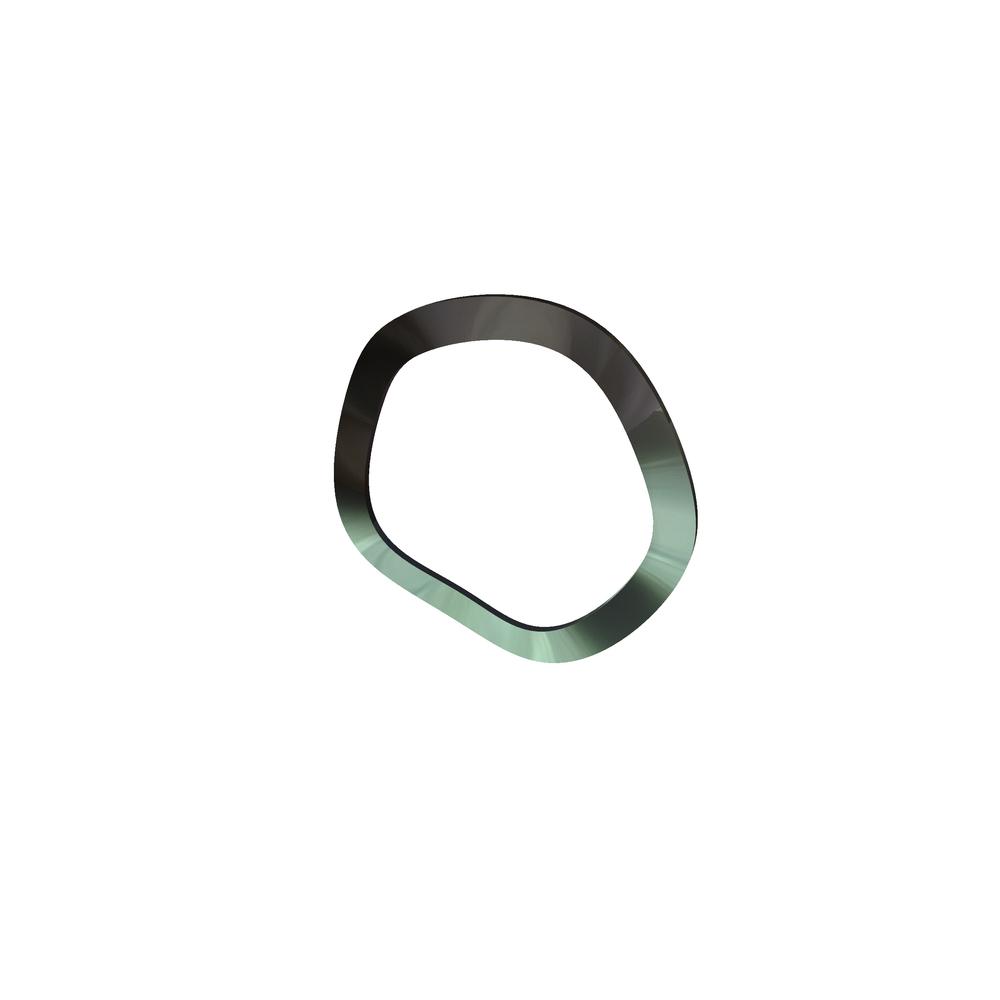

W0305-007S
WAVE SPRING WASHER SST .305 .243 .0066
Alternate Codes: 066567
RoHS
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $1.716 | $1.320 | $1.073 | $0.954 | $0.858 | Larger Quantities |
In Stock
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| OD | 132 |
| ID | 0.243in |
| Loaded at -H1(P1) (Min.) | 0.5 lbs |
| Loaded at -H1(P1) Max lbs. | 1.0 lbs |
| Loaded Height-H1 | 0.015in |
| Brand | ASSOCIATED SPRING |
| Type | Wave Washer |
| Head Height (Max.) | 0.030in |
| Thickness (Max.) | 0.007in |
| Former Catalog Number | - |
