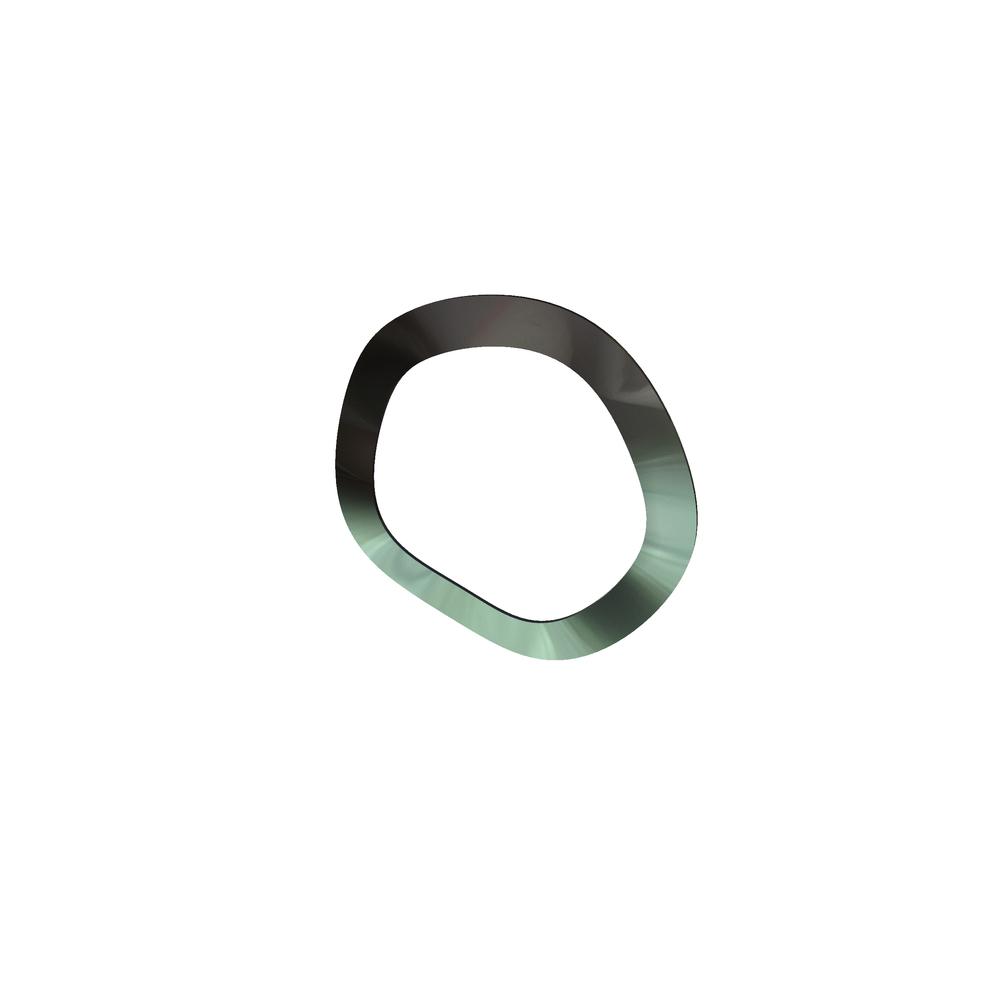

Image for reference purposes only. Actual product may vary.
W0855-010S
WAVE SPRING WASHER SST .855 .650 .010
Alternate Codes: D6-6, SV-5
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.713 | $0.454 | $0.416 | $0.384 | $0.324 | Larger Quantities |
In Stock
Maximum stock already in cart
| ID | 0.650in |
| OD | 347 |
| Thickness (Max.) | 0.010in |
| Finish | Plain |
| Material | Stainless Steel |
| Head Height (Max.) | 0.060in |
| Units | Inch |
| Loaded at -H1(P1) (Min.) | 4.0 lbs |
| Loaded at -H1(P1) Max lbs. | 7.0 lbs |
| Loaded Height-H1 | 0.030in |
| Brand | ASSOCIATED SPRING |
| Type | Wave Washer |
| Former Catalog Number | R6 |
