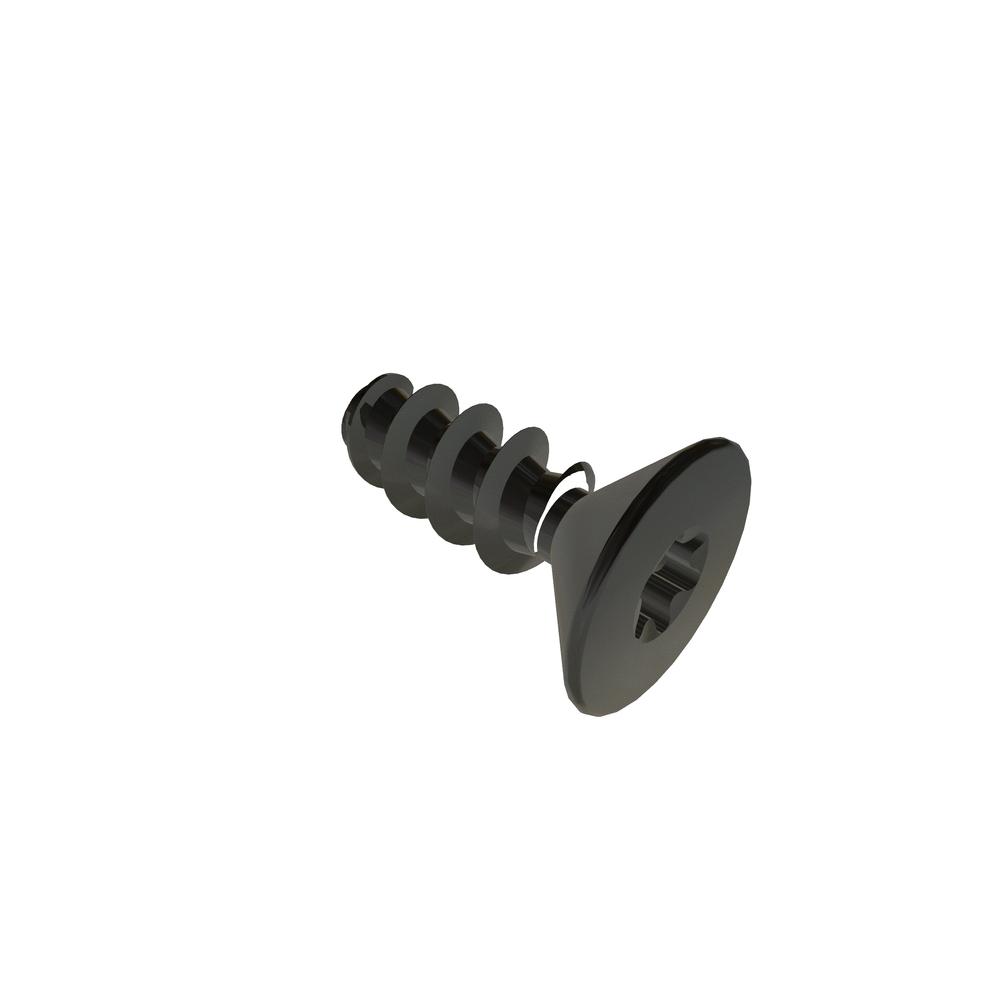

Image for reference purposes only. Actual product may vary.
WN1423-KA50X14/R
M5-2.2X14 6-LOBE FLAT PT SCR STL ZN RoHS
Alternate Codes: N/A
M5-2.2 X 14 6-Lobe Flat Head PT Screw WN1423 Steel Zinc Plated RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M5x2.2 |
| Finish | Zinc Clear |
| Brand | VARIED |
| Drive Type | 6-Lobe |
| Head Type | Flat |
| Nominal Thread Size | M5 (K50) |
| Recess Diameter | 3.95 mm |
| Penetration Depth (Max.) | 1.70 mm |
| Penetration Depth (Min.) | 1.25 mm |
| Material | Steel |
| Units | Metric |
| Thread Type | PT Thread |
| Drive Size | T20 |
| RoHS | Compliant |
| Head Diameter (Max.) | 9.30 mm |
| Head Height (Max.) | 0.75 mm |
